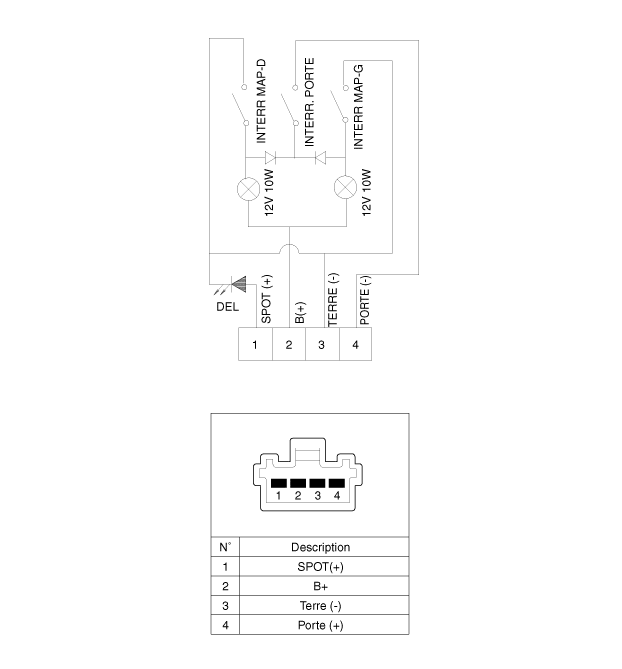

| Schéma du circuit |

Procédures de réparationSpécifications
SPÉCIFICATION
ACCELERATEUR
Position
Tension de sortie (V)
APS 1
APS 2
C.T
0,7 ~ 0,8
0,29 ~ 0,46
W.O.T
3,85 ~ 4,35
1,93 ~ 2,18
...
Spécifications
Spécifications
Commande directe VFS [T/CON]
▷ Type de commande : type bas normal
Pression de commande kpa (kgf/cm², psi)
9.81 ~ 500.14 (0.1 ~ 5.1,1.42 ~ 72.54)
Valeur du courant (mA)
50 ~ 850
Rési ...
